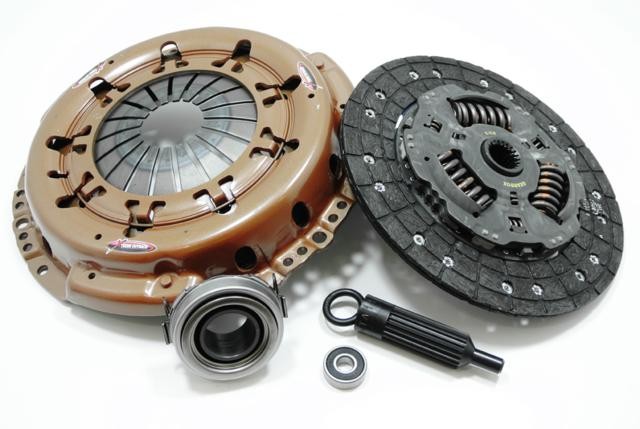

Clutch Kit - Xtreme Outback Heavy Duty Organic (the same as KTY26011-1A) 430Nm (28% inc.) (ACS)

Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

• Torque capacity 430Nm

• Clamp load 28% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Specifications

• Clutch Disc Diameter (mm): 260
• Clutch Disc Spline Count: 21
• Clutch Disc Spline Diameter (mm): 29,8
• Flywheel Step (mm): -4.0
• Torque (Nm): 430
• Clamp Load:
• Clamp Load Increase: 28%
• Stage: Stage 1
• Recommended for: Street / Offroad / Towing
• Tech Bulletins: TSB-TY05 TSB-254
• Design: Single Plate Sprung Organic Disc – smooth engagement, excellent clutch control and improved drivability for off-road, towing and heavy-duty use.
• Kit includes: Pressure plate, Clutch disc, Release bearing, Alignment tool, Spigot bearing
• Flywheel: Not included
