SPECS:
- CFM: 1.80 @ 0 PSI (12V) 2.20 @ 0 PSI (24V)
- 12-Volt / 24-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 23-Amps
- Max. 24V Amp Draw: 3-Amps
- Ingress Protection Rating: IP67
- Max. Ambient Temp: +158°F
- Min. Ambient Temp: -40°F
- Dimensions: 11.25″L x 4″W x 6.75″H
- Net Weight: 10.40 lbs.
- PN: 45050: In Rush Current (A) @ 0 PSI = 89.45
- PN: 45050: dB @ 0 PSI = 67.2
- PN: 45058: In Rush Current (A) @ 0 PSI = 62.4
- PN: 45058: dB @ 0 PSI = 74.7

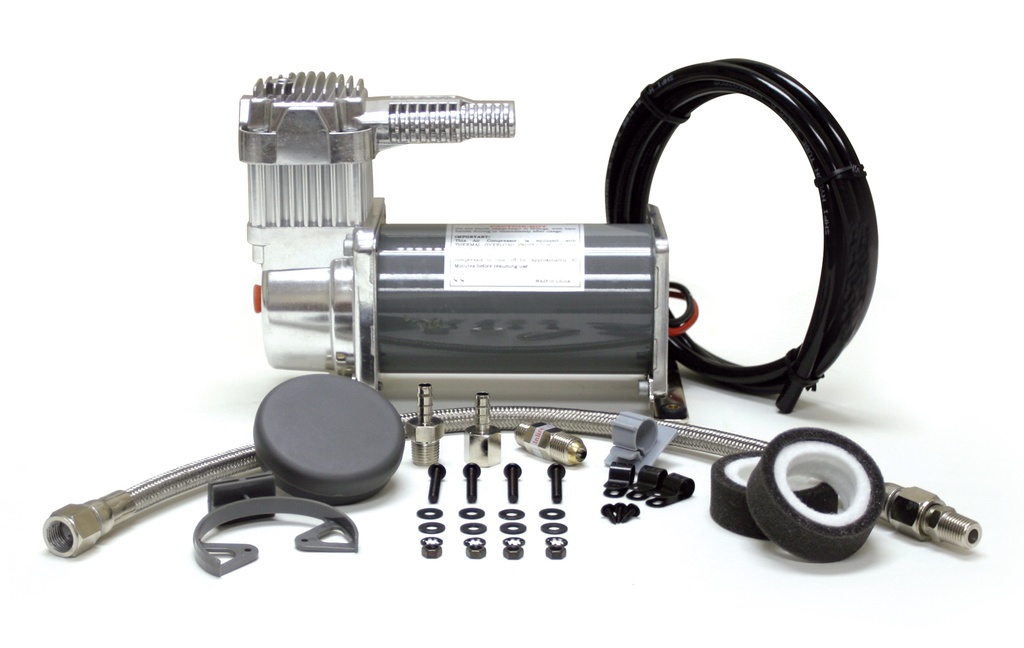

FEATURES:
- Thermal Overload Protector
- Vibration Isolators
- Mounting Hardware
- Heavy Duty 1/4″ NPT Check Valve
- Stainless Steel Braided PTFE-Lined Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
24-VOLT COMPRESSOR - Supply Voltage 28 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.20 | 8 | 0 | 62.3 | 8 |
| 10 | 1.98 | 9 | 1.0 | 54.4 | 10 |
| 20 | 1.86 | 11 | 2.0 | 50.6 | 11 |
| 30 | 1.78 | 11 | 3.0 | 47.0 | 11 |
| 40 | 1.69 | 11 | 4.0 | 43.4 | 12 |
| 50 | 1.59 | 12 | 5.0 | 40.6 | 12 |
| 60 | 1.52 | 12 | 6.0 | 37.7 | 12 |
| 70 | 1.45 | 12 | 7.0 | 35.0 | 13 |
| 80 | 1.38 | 12 | 8.0 | 32.0 | 12 |
| 90 | 1.31 | 12 | 9.0 | 28.5 | 12 |
| 100 | 1.24 | 13 | 10.0 | 26.0 | 12 |
| 110 | 1.17 | 13 | |||
| 120 | 1.09 | 12 | |||
| 130 | 1.01 | 12 | |||
| 140 | 0.95 | 12 | |||
| 150 | 0.88 | 12 |
24-VOLT COMPRESSOR
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 45 sec. (± 10 sec.) |
| 85 to 105 PSI | 25 sec. (± 05 sec.) |
| 0 to 145 PSI | 2 min. 40 sec. (± 10 sec.) |
| 110 to 145 PSI | 50 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 3 min. 20 sec. (± 10 sec.) |
| 85 to 105 PSI | 50 sec. (± 05 sec.) |
| 0 to 145 PSI | 5 min. 15 sec. (± 15 sec.) |
| 110 to 145 PSI | 1 min. 45 sec. (± 10 sec.) |
