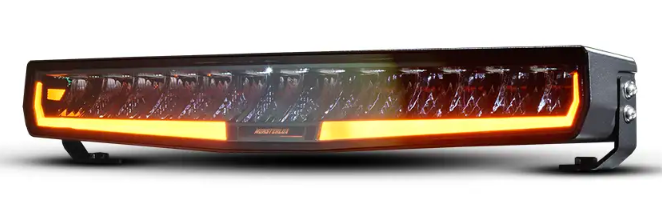

Monsterlux Dark Digger 20 LED additional light panel
Monsterlux Dark Digger 20 is a new generation LED auxiliary light panel that combines a controlled light pattern, long and wide range and a modern design. Vision Select optics offer two different light modes: the e-Safe mode approved for road traffic and the highly
efficient Monster Mode™ off-road mode for demanding conditions.
The panel-like optics produce a wide and pleasant light pattern that also effectively illuminates shoulders and edge zones. e-Safe mode uses separate optics to reduce glare and allows for longer use of the high beam in collision situations. Monster Mode™ unleashes the full performance of the lamp for off-road and private road use when maximum range and light output are needed. The curved structure and striking horn parks complete the appearance of the lamp. The e-Safe cut light pattern also works excellently in snowfall and foggy driving conditions.
To get the most out of the light and ensure easy installation, we recommend using a ready-made Monsterlux wiring harness with power relays for one light.
The wiring harness allows you to easily change the power mode and light pattern at the touch of a button according to the driving situation and road conditions. You can find the wiring harness under product numbers 3555-811101.
The smooth-surfaced body repels dirt, snow and ice, which makes it easier to keep clean in northern conditions. A wide operating voltage, clear connections and several mounting options make installation easy in passenger cars, commercial vehicles and construction machinery.
Tekniset tiedot
Merkki ja malli:
Monsterlux Dark Digger 20
Lumenit:
2800 lm (e-Safe mitattu) / 16800 lm (Monster Mode mitattu)
Kantama 1 Lux:
260 m (e-Safe) / 630 m (Monster Mode)
Värilämpötila:
5000 K
Virrankulutus 13,7V:
1,8 Amp (e-Safe) / 13,1 Amp (Monster Mode)
Käyttöjännite:
9-32 V
Teho:
25 W (e-Safe) / 180 W (Monster Mode)
Referenssiluku:
25 (e-Safe-tila)
Parkkivalo:
Kyllä – sarviparkit (valkoinen ja oranssi)
Tieliikennehyväksytty:
Kyllä, e-Safe-tilassa (Monster Mode – ei tieliikenteeseen)
Hyväksynnät:
R10, R149
IP-luokitus:
IP68
Liittimen tyyppi:
4-napainen Deutsch DTP
Liittimen vastakappale:
Kyllä
Johdon pituus:
50 cm
Muoto:
Kaareva paneeli
Mitat:
508 × 60-71 × 73 mm (Leveys|Korkeus|Syvyys) ((Korkeus jalan kanssa 80
mm))
Paino:
2,7 Kg
Ledit:
14 x 15W LED
Valotehonsäätö (boost):
Kyllä Monster Mode™ (off-road)
3555-201101 Monsterlux Dark Digger 20.docx
Kiinnitys:
Päätyjalat ja alapuoliset leveyssäädettävät liukujalat
Takuu kk:
24 kk
