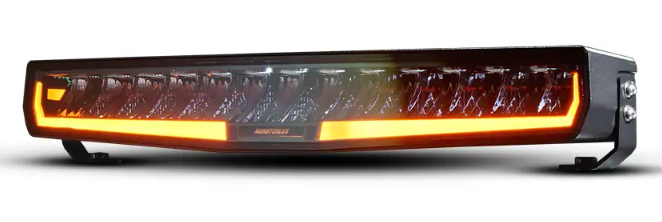

Monsterlux Dark Digger 20 LED additional light panel
Monsterlux Dark Digger 20 is a new generation LED auxiliary light panel that combines a controlled light pattern, long and wide range and a modern design. Vision Select optics offer two different light modes: the e-Safe mode approved for road traffic and the highly
efficient Monster Mode™ off-road mode for demanding conditions.
The panel-like optics produce a wide and pleasant light pattern that also effectively illuminates shoulders and edge zones. e-Safe mode uses separate optics to reduce glare and allows for longer use of the high beam in collision situations. Monster Mode™ unleashes the full performance of the lamp for off-road and private road use when maximum range and light output are needed. The curved structure and striking horn parks complete the appearance of the lamp. The e-Safe cut light pattern also works excellently in snowfall and foggy driving conditions.
To get the most out of the light and ensure easy installation, we recommend using a ready-made Monsterlux wiring harness with power relays for one light.
The wiring harness allows you to easily change the power mode and light pattern at the touch of a button according to the driving situation and road conditions. You can find the wiring harness under product numbers 3555-811101.
The smooth-surfaced body repels dirt, snow and ice, which makes it easier to keep clean in northern conditions. A wide operating voltage, clear connections and several mounting options make installation easy in passenger cars, commercial vehicles and construction machinery.
Technical data
Brand and model:
Monsterlux Dark Digger 20
Lumens:
2800 lm (e-Safe measured) / 16800 lm (Monster Mode measured)
Range 1 Lux:
260 m (e-Safe) / 630 m (Monster Mode)
Color temperature:
5000 K
Power consumption 13.7V:
1.8 Amp (e-Safe) / 13.1 Amp (Monster Mode)
Operating voltage:
9-32 V
Power:
25 W (e-Safe) / 180 W (Monster Mode)
Reference number:
25 (e-Safe mode)
Parking light:
Yes – horn parking lights (white and orange)
Road traffic approved:
Yes, in e-Safe mode (Monster Mode – no for road traffic)
Approvals:
R10, R149
IP rating:
IP68
Connector type:
4-pin Deutsch DTP
Connector counterpart:
Yes
Cable length:
50 cm
Shape:
Curved panel
Dimensions:
508 × 60-71 × 73 mm (Width|Height|Depth) ((Height with foot 80
mm))
Weight:
2.7 Kg
LEDs:
14 x 15W LED
Light output control (boost):
Yes Monster Mode™ (off-road)
3555-201101 Monsterlux Dark Digger 20.docx
Mounting:
End feet and lower width-adjustable sliding feet
Warranty months:
24 months
