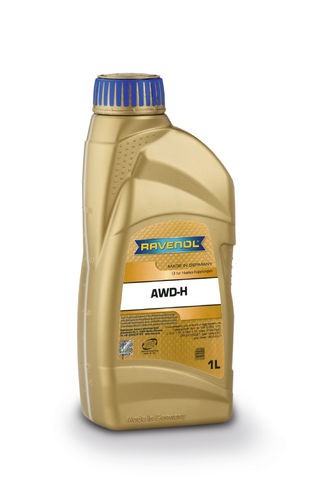

Ravenol AWD-H transmission and haldex fluid, 1L
RAVENOL AWD-H FLUID is a high-quality formula of high-performance oils with special additives and inhibitors.RAVENOL AWD-H FLUID is a special high-performance transmission oil for Haldex's Allrad, Quattro and 4motion powertrains.
How the Hadlex coupling operates: The axle closest to the engine is constantly powered. All-wheel drive powertrains with a Haldex coupling automatically direct engine power to the other axle where required, without any intervention from the driver. Depending on the electronically-controlled blocking effect of the Haldex coupling, a variable proportion of the engine power is transferred to this axle as required.
RAVENOL AWD-H FLUID supports this power transfer process with its outstanding qualities.
Application Notes
RAVENOL AWD-H FLUID is suitable for use with all-wheel drive powertrains with Haldex couplings in AUDI, VOLKSWAGEN, SEAT, SKODA, OPEL, LANDROVER and VOLVO vehicles.
RAVENOL AWD-H FLUID should be changed every 60.000 km in order to avoid damage to the powertrain.
Practice and tested in aggregates with filling
VW G 052 175 A2, G 055 175 A2, G 060 175 A2, Volvo 31367940, GM 93165387, Opel 1940057, Land Rover LR 054941, LR 003136 (Haldex-Öl Baujahr 2011-2014)
| Characteristics | Unit | Data | Audit |
|---|---|---|---|
| Density at 20°C | kg/m³ | 855,0 | EN ISO 12185 |
| Colour | gelblich | visual | |
| Pourpoint | °C | -54 | DIN ISO 3016 |
